2x Block Making Machines

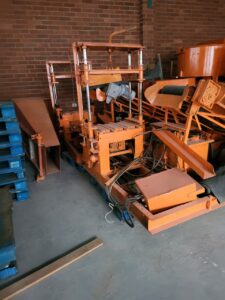

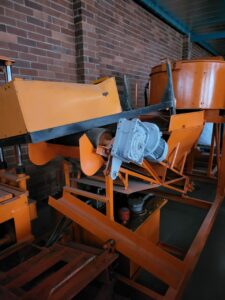

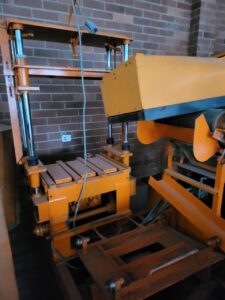

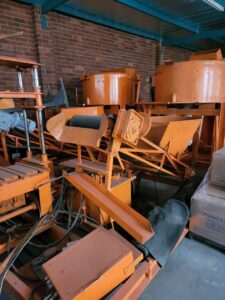

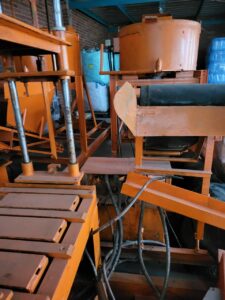

1. Profile Semi Auto block making machine
   Description:
   A plant for ‘Africa’. A robust and practical plant for use by any  workforce with optional automated stages to increase productivity and output.Specifications:
   Hydraulic vibrated machine with hydraulic skip chute and mould box lifting action, 300L skip chute, 300L Mixer and 2m conveyer to feed machine.Static Data:
   Production output:
   Bricks 220x105x72 – Drop quantity (18) – Production per hour (Standard 1850) and (Automated 3600)
   Hollow Block 390x190x190 – Drop quantity (3) – Production per hour (Standard 270) and (Automated 540)
   Hollow Block 390x190x140 – Drop quantity (5) – Production per hour (Standard 450) and (Automated 900)
   Interlock Pavers 200x100x60 – Drop quantity (12) – Production per hour (Standard 1230) and (Automated 2400)

   *Production output may vary from area to area and operating conditions. Should be used as a target estimate only.*

   Labour Force – 13
   Approx. Cement usage – 7% – 8%

   Power Requirements:
   Single green – 3 Phase – Standard (31A) and Automated (55A)
   25m Chain Conveyor & Gantry

2. Profile Fully Auto block making machine
   Description:
   An Automated PLC controlled plant with hydraulic vibration, automated weighing and product handling chain in conveyor and gantry.Specifications:
   PLC controlled machine, 2 pneumatically controlled bins, weighing conveyor, 600L mixer on a platform to feed machine, 40m chain conveyor & gantry of 30m width.Static Data:
   Production output:
   Bricks 220x105x72 – Drop quantity (24) – Production per hour (Automated 5400)
   Hollow Block 390x190x190 – Drop quantity (4) – Production per hour (Automated 800)
   Hollow Block 390x190x140 – Drop quantity (6) – Production per hour (Automated 1200)
   Interlock Pavers 200x100x60 – Drop quantity (16) – Production per hour (Automated 3600)

   *Production output may vary from area to area and operating conditions. Should be used as a target estimate only.*

   Labour Force – 9 -10
   Approx. Cement usage – 6% – 7%

   Power Requirements:
   Stage 3 – 3 Phase – KVA (80-115) – AMPS (120-165)
